69.2 Setting Up Status Window Contents

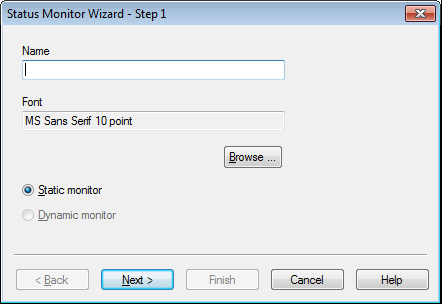

Right-click in the status window and choose Setup Wizard.
|
Name |
Name the new status window. Note that changing the name later will create a new status window, and the contents of the current window will be lost. |
|
Font |
Click Browse and select a font. |
Click Next to proceed to step 2 of the setup wizard.

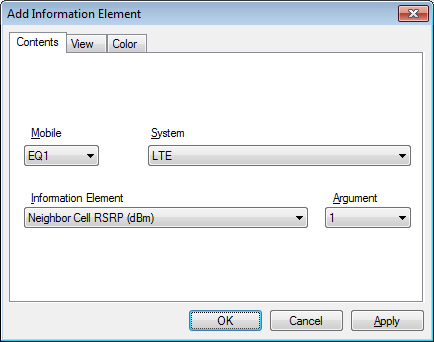

To add an information element, click Add. This dialog opens:
|
Mobile |
Choose which device to pick the information element from. |
|
System |
Choose an information element category. See Information Elements and Events, chapter "Information Element Categories". |
|
Information element |
Choose an information element. |
|
Argument |
Enter an argument for the information element (if it needs one). |

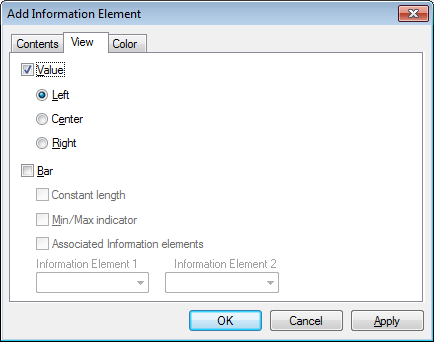

Select the View tab to customize how data is displayed.
|
Value |
Check to display values alphanumerically. |
|
Left, Center, Right |
Choose alignment for the displayed values. |
|
Bar |
Check to display numeric values as colored bars. |
|
Constant length |
Draw the bar with constant length. This is useful for information elements that represent states, etc. and can only assume a limited number of values. |
|
Min/Max indicator |
Keep track of the all-time-low and all-time-high values by means of vertical lines. |
|
Associated information elements Information Element 1 Information Element 2 |
This checkbox with accompanying combo boxes is enabled only for the CDMA window Finger Info. In that window, you can visualize the thresholds "" and "" as vertical black lines drawn on top of the bars in the Energy column. See screenshot in section "CDMA Finger Info". |

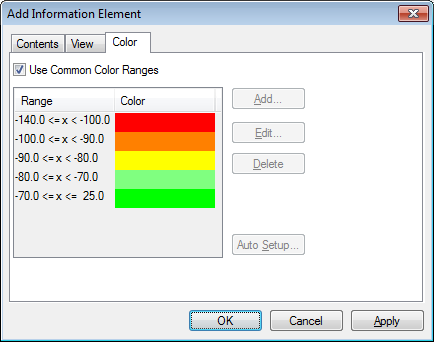

Finally, select the Color tab to customize colors and color ranges.
|
Use common color ranges |
Check the box if you want to use the default color range of the information element. If you want to define a special color range here, uncheck the box and specify the range (see section "Info Element Tab" for details on how to do this). |
Click Apply to add more information elements.
Click OK when you are done adding information elements. Then exit the setup wizard by clicking Finish.
